Description
This macro allows to simulate random wind velocity according to G. Deodatis (1996) simulation method. Macro version: 1.0 Last modified: 2025-01-18 LabRPS version: All Author: LabRPS
Author
LabRPS
Download
None
Links
How to install macros How to customize toolbars
Macro Version
1.0
Date last modified
2025-01-18
LabRPS Version(s)
All
Default shortcut
None
See also
Macro Deodatis 1996 Mean Wind Profile

This macro allows to simulate random wind velocity according to G. Deodatis (1996) simulation method presented in the paper Simulation of Ergodic Multivariate Stochastic Processes which outlines an approach for simulating multivariate stochastic processes that are ergodic. Ergodicity in this context refers to the property that time averages converge to ensemble averages for a given process. The model focuses on methods that can generate multivariate realizations of such processes while ensuring that the statistical properties of the simulated data reflect the underlying stochastic processes.

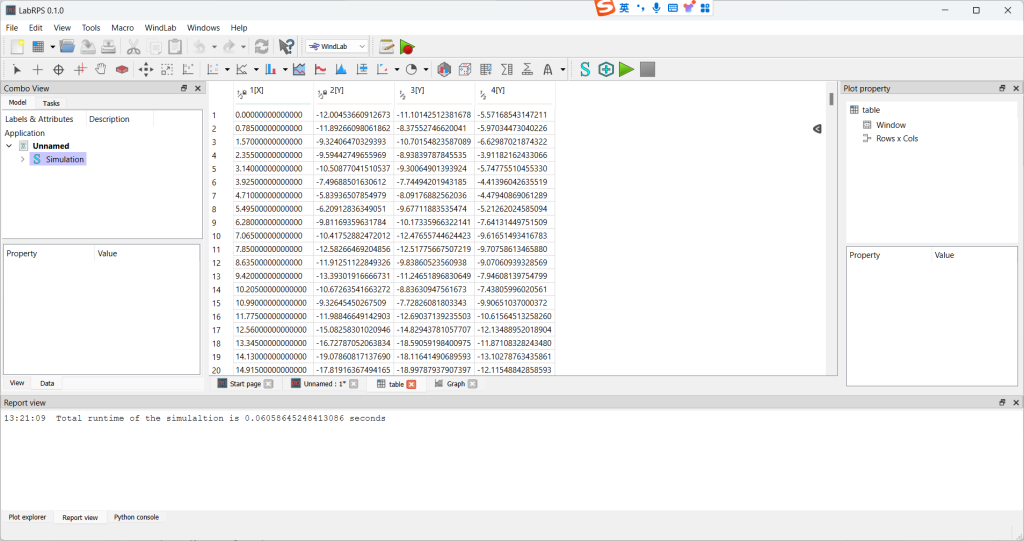

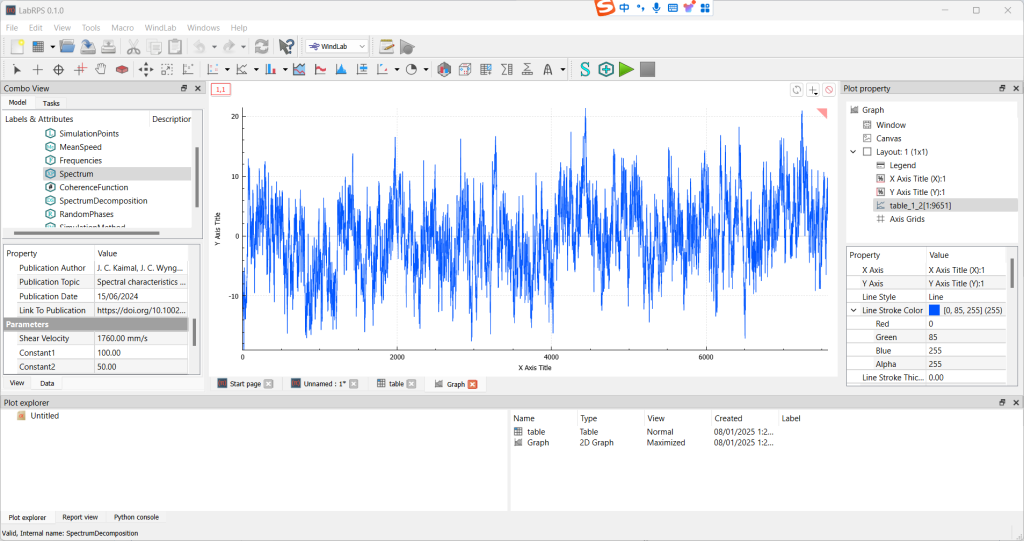

Simulated wind velocity data

Script

You can find the source code on the following Github repository: Get the code here!

Macro_Deodatis_1996_Simulation_Method.RPSMacro

# -*- coding: utf-8 -*-
# (c) Koffi Daniel 2025

import LabRPS
from LabRPS import Vector as vec

import WindLab
import WindLabObjects

# -*- coding: utf-8 -*-
# (c) Koffi Daniel 2024

__Name__ = 'Deodatis1996SimulationMethod'
__Comment__ = 'Simulate random velocity according to Deodatis 1996'
__Author__ = 'Koffi Daniel'
__Version__ = '0.1.0'
__Date__ = '08/01/2025'
__License__ = ''
__Web__ = ''
__Wiki__ = 'https://wiki.labrps.com/Macro_Deodatis_1996_Simulation_Method'
__Icon__ = ''
__Help__ = ''
__Status__ = ''
__Requires__ = ''
__Contact__ = ''
__Communication__ = ''
__Files__ =  ''

import LabRPS
import WindLab
import WindLabObjects
from LabRPS import Vector as vec
import time

def simulate():
    # Plugin
    installResuslt = WindLab.installPlugin("WindLabPlugin")
    if not installResuslt:
       LabRPS.Console.PrintError("The installation the WindLabPlugin has failed.\n")
       return None

    # Document
    doc = LabRPS.newDocument()

    # Simulation
    sim = WindLabObjects.makeSimulation(doc, "Simulation")
    if not sim:
       LabRPS.Console.PrintError("The simulation does not exist.\n")
       return None

    # set simulation parameters
    sim.NumberOfFrequency = 2048
    sim.MaxFrequency = "0.64 Hz" # 4 rad/s;
    sim.FrequencyIncrement = "0.00031 Hz" # 0.00195 rad/s;
    sim.TimeIncrement = "0.785 s"
    sim.NumberOfTimeIncrements = 9651

    # Simulation points
    loc = WindLabObjects.makeFeature("SimulationPoints", "Simulation",  "General Distribution", "Location Distribution")
    if not loc:
        LabRPS.Console.PrintError("Error on creating the location distribution.\n")
        return None

    v1 = vec(0, 0, 35)
    v2 = vec(0, 0, 40)
    v3 = vec(0, 0, 140)
    loc.Locations = [v1, v2, v3]

    # Mean wind Profile
    mean = WindLabObjects.makeFeature("MeanSpeed", "Simulation",  "Logarithmic Law Profile", "Mean Wind Profile")
    if not mean:
        LabRPS.Console.PrintError("The creation of the mean wind profile was not successuful.\n")
        return None

    mean.TerrainRoughness = '0.001266 m'
    mean.ShearVelocity = '1.76 m/s'

    # Frequencies
    frequency = WindLabObjects.makeFeature("Frequencies", "Simulation",  "Double Index Frequency Discretization", "Frequency Distribution")
    if not frequency:
        LabRPS.Console.PrintError("Error on creating the frequency distribution.\n")
        return None

    # Spectrum
    spectrum = WindLabObjects.makeFeature("Spectrum", "Simulation",  "Kaimal Along Wind Spectrum", "Along Wind Spectrum")
    if not spectrum:
        LabRPS.Console.PrintError("Error on creating the spectrum model.\n")
        return None

    # Coherence
    coherence = WindLabObjects.makeFeature("CoherenceFunction", "Simulation",  "Davenport Coherence Function", "Coherence Function")
    if not coherence:
        LabRPS.Console.PrintError("The creation of the coherence was not successuful.\n")
        return None
    coherence.ExponentialDecayCz = 10

    # Spectrum decomposition
    spectrumD = WindLabObjects.makeFeature("SpectrumDecomposition", "Simulation",  "Cholesky Decomposition", "Spectrum Decomposition Method")
    if not spectrumD:
        LabRPS.Console.PrintError("Error on creating the spectrum decomposition method.\n")
        return None

    # Random phase
    randomness = WindLabObjects.makeFeature("RandomPhases", "Simulation",  "Uniform Random Phases", "Randomness Provider")
    if not randomness:
        LabRPS.Console.PrintError("The creation of the randomness provider was not successuful.\n")
        return None

    # Simulation method
    simMethod = WindLabObjects.makeFeature("SimulationMethod", "Simulation",  "Deodatis 1996", "Simulation Method")
    if not simMethod:
        LabRPS.Console.PrintError("Error on creating the simulation method.\n")
        return None

    # Run simulation and output the first(0) sample
    # store starting time
    begin = time.time()
    velocities = sim.simulate(0)
    # store end time
    end = time.time()
    LabRPS.Console.PrintMessage(f"Total runtime of the simulaltion is {end - begin} seconds\n")

    if LabRPS.GuiUp:
       import WindLabGui
       import GeneralToolsGui
       WindLabGui.setActiveSimulation(sim)
       GeneralToolsGui.GeneralToolsPyTool.showArray(sim.getSimulationData().numberOfTimeIncrements, sim.getSimulationData().numberOfSpatialPosition + 1, velocities, True)

simulate()
